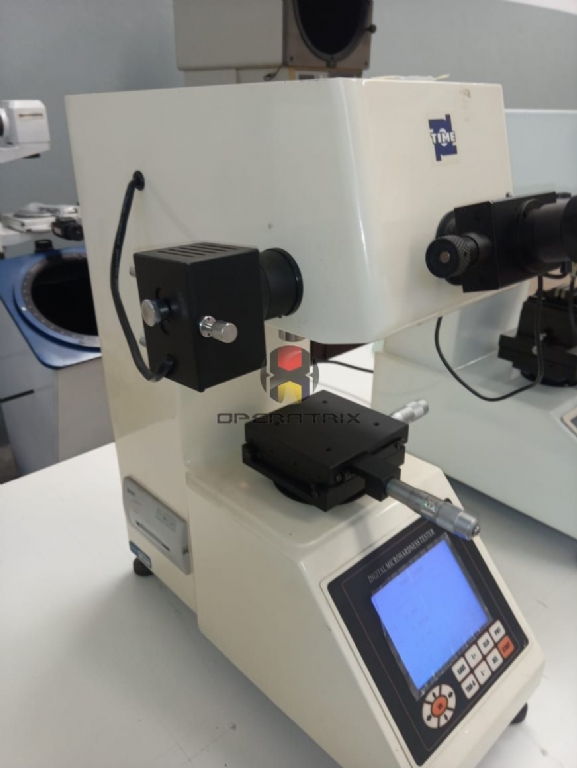

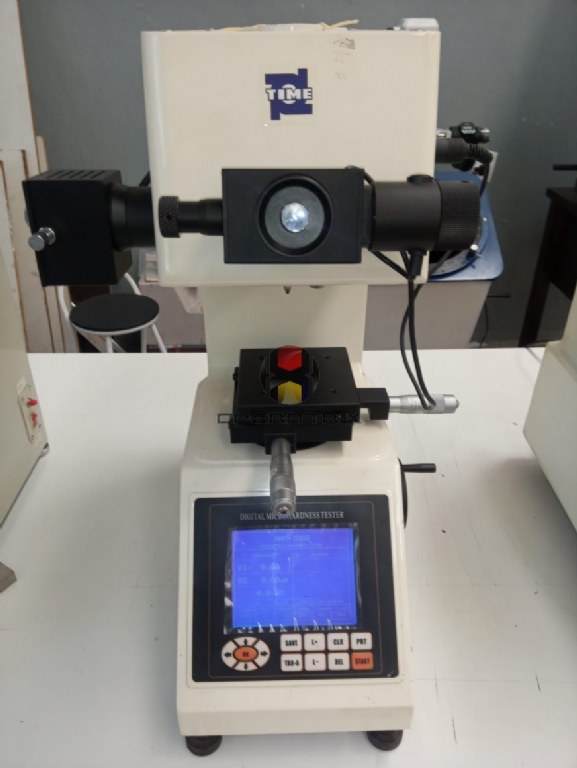

MICRODUROMETRO VICKES MHV-2000 DIGITAL
MHV-2000 Series Technical Specifications:
Product Name
Manual-turret Micro Vickers Hardness Tester
Auto-turret Micro Vickers Hardness Tester
Model
MHV-2000
MHV-2000Z
Testing Force
gf
10?25?50?100?200?300?500?1000?2000
N
0.098?0.246?0.49?0.98?1.96?2.94?4.90?9.80?19.60
Indentation Measurement
Digital Encoder Measurement
Output Data
Rs232/Mini-printer
Loading Control
Automatic (Loading, Dwell, Unloading)
Magnification of Microscope
Observation:10x; Measurement:40x
Magnification on of Eyepiece
10x Eyepiece
Dwell Time
Adjustable 5~60s
Testing Range
1HV~2967HV
Auto Hardness Conversion
HRA ,HRB,HRC,HV,HK,HBW etc
X-Y Anvil
Size:100x100mm; Travel:25 x25mm; Resolution:2um
Illumination
Halogen light-source
Max. Height of Specimen
100mm
Instrument Throat
98mm
Power Supply
AC220V/50Hz;110V/60Hz
Dimension(LxWxH)
480 x305x545mm
Packing Dimension
500 x 490 x 700mm
Gross/Net Weight
45Kg/35Kg
Execution Standard
GB/T4340.2, EN-ISO6507, ASTME10-18, ASTME-384
